Scheduling

Users can create and edit schedules for both models and publications.

The schedules for both Model and Publish can be created from within each app, when the relevant item is open in the App Tab interface. However, schedules can also be created and managed from the relevant content item's Actions Panel .

Note: Scheduling of models and publications is not available in the Community Edition.

Accessing Schedules

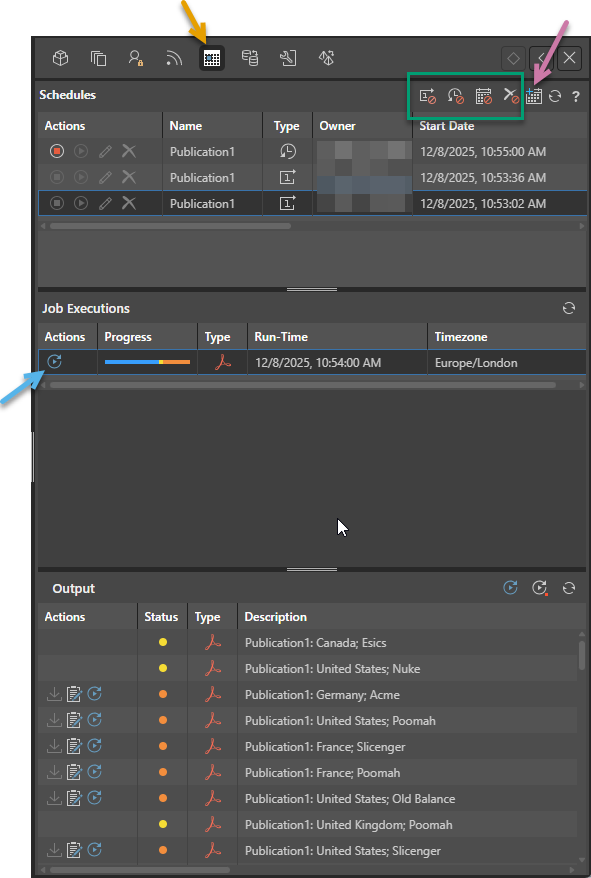

To access the schedules for both Publish and Model content (other than from inside each app), click the Scheduling button on the item's Actions Panel (green arrow below) or choose "Schedule" from the item's context menu.

The schedule tools can only be viewed for one item at time. If multiple objects are selected in the content manager the options are unavailable.

The Scheduling tab of the content item's Actions Panel exposes several capabilities:

  • A list of existing schedules that have been configured for the model or publication are presented. For each existing schedule in the list:
    • Actions allow users to stop, start, edit, or delete a content item's schedule.
    • View a list of job executions for a given schedule (these are the instances when a schedule was run in the past)
      • For each job, view the list of outputs.
        • For publications: download the rendered report or see its Print & Export Summary
        • For models: see the progress report for the model execution

The tab also has buttons at the top that lets users create a new schedule for a given content item.

Schedules List

When you open the Scheduling tab, you will be presented with a list of schedules for the selected item. By default, the listing shows "live schedules" only - which are current recurring schedules that have not ended or one-off schedules that need to run or completed running in the last 24 hours.

At the top of the list are several options (blue highlight below). From left to right these options are:

  • Show/ Hide old one offs: show or hide old on-off (non-recurring) schedules (hidden be default).
  • Show/ Hide inactive recurring: show or hide recurring schedules that have been stopped (hidden by default).
  • Show/ Hide deleted: show or hide deleted schedules (hidden by default).

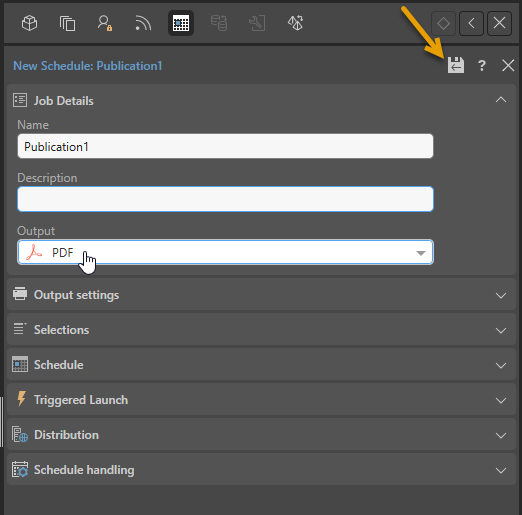

  • New schedule: create a new schedule.
  • Refresh: refresh the list of schedules.

For each schedule in the list you will see several columns; scroll across to see all columns.

Each listing will display the following columns:

  • Actions: from the actions column, you can stop, start, edit, or delete a schedule.
  • Name: the name of the schedule.
  • Type: the icon indicates the schedule type; either a one-off or recurring.
  • Owner: the user who owns the schedule.
  • Start Date: the sate and time at which the schedule started or will start.
  • End Date: the date and time at which the schedule ended or will end (if the schedule is recurring and an end time and time was defined).
  • Creation Date: the date and time at which the schedule was created.
  • Description: the schedule's description (if one was given).

Edit a Schedule

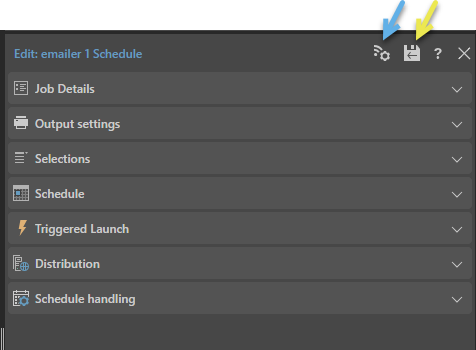

All schedules can be edited to adjust their settings and configuration. When editing an existing schedule, there are 2 options for saving changes to the schedule:

  • Save: click the Save icon (green highlight below) to save changes to the schedule without running it.
  • Save & Run: click the Save & Run icon (yellow highlight) to save changes and run the scheduling job.

Job Executions

Each time a schedule is run, its creates a "job". To view the historical list of job executions for a particular schedule, click on the schedule item in the list to show all its current and previous job executions. Each listing in the job executions will display the following columns:

  • Actions: the option to re-run the entire job.
  • Progress: shows the progress of the job, showing the percentage of separate tasks and their status
    • blue indicates the number of tasks that are currently waiting in queue to be processed
    • yellow is the number of tasks that are currently processing,
    • red is the number of tasks that have failed
    • green is the number of tasks that completed successfully.
  • Type: the file output type (relevant for publications only)
  • Run-Time: the date and time that the job was run.

Outputs

Each job produces one or more "outputs".

  • For publications, the outputs are each of the rendered reports - and usually there are multiple rendered outputs.
  • For models, the output is simply the result of the data flow and model processing - which is therefore only a single output.

You can view the output of a specific job execution by clicking on the job's listing. This will open the Output panel for the selected job execution (blue arrow below). The output panel has slightly different functionality based on the content type.

Publications

The Output list for publications displays the following columns:

  • Actions: from the Actions column you can download the publication, view the Print & Export Summary, or re-run the specific task.
  • Status: displays the status of the job execution's output.
    • red - a specific task that failed
    • orange - a specific task that partially failed
    • green - a specific task that was fully successful
  • Type: the output type (PDF, Word, Excel etc)
  • Description: the name of the schedule job.
  • Start Date: the date and time that the job execution's output started running.

Above the list, there are buttons to rerun all tasks (which is the same as rerunning the entire job as described above) or rerun only those tasks that failed (yellow box below).

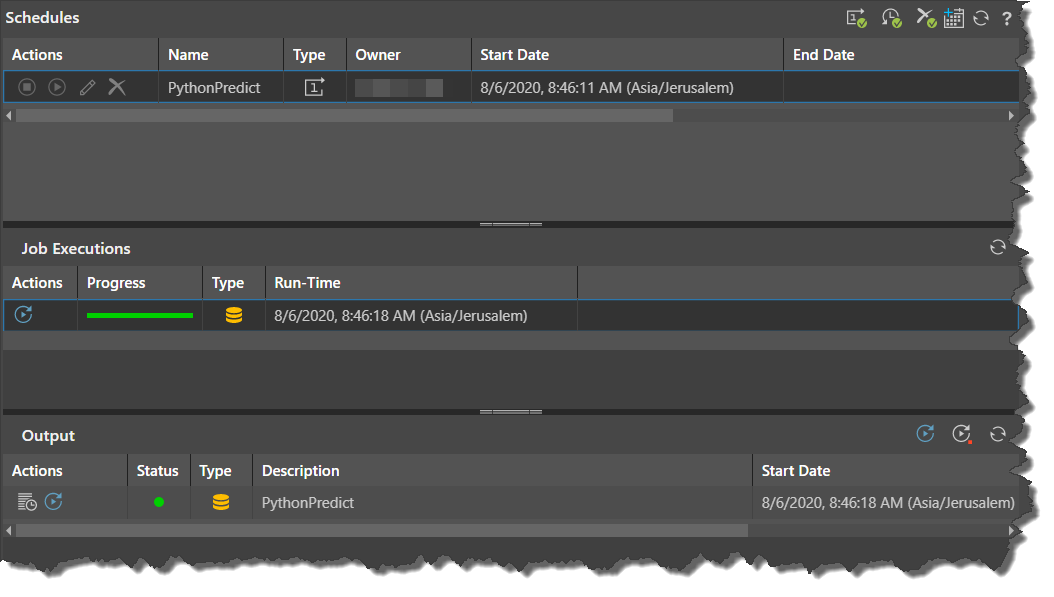

Models

The Output list for model schedules displays the similar columns as listed above. However, the Actions column presents 2 options:

  • ETL Progress: open the ETL Progress dialog to see details of the status of each component of the ETL that was run.
  • Re-run: re-run the model task.
