Matrix Table Layout

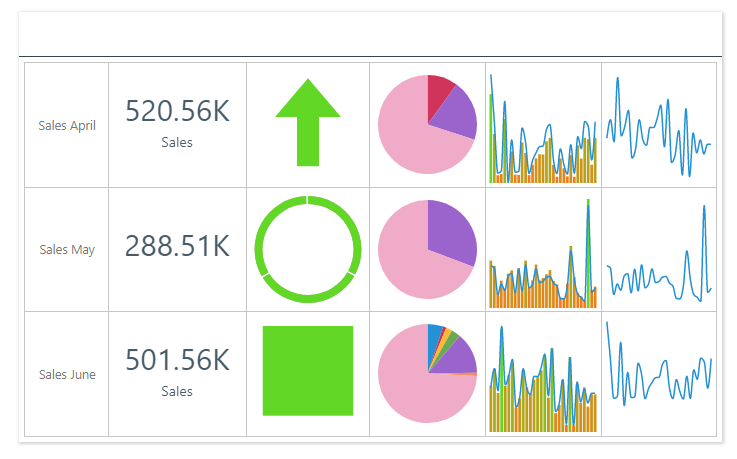

The Matrix Table is a layout container used to display multiple visuals and assets within tiles in a tabular construct. The table can be used to display visuals, illustrations, images, text, slicers, buttons, images, and web panels. However, the matrix table is commonly used to create KPI scorecards. Typically, KPIs, mini visuals, and text labels are displayed across several rows, to easily compare these details within a single formatting structure. For example, the matrix table below compares sales during April, May, and June.

Note: This feature is not available in the Community Edition.

Add a Table

Do either of the following from the Toolbox:

• Click Add Table (red arrow below) to add a table of the default size (3 columns by 3 rows; 9 tiles in total).

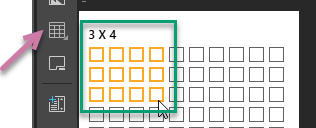

• Right-click Add Table and specify the table size by selecting rows and columns (green highlight below).

Then click anywhere on the canvas to place the container there.

Add Assets to the Table

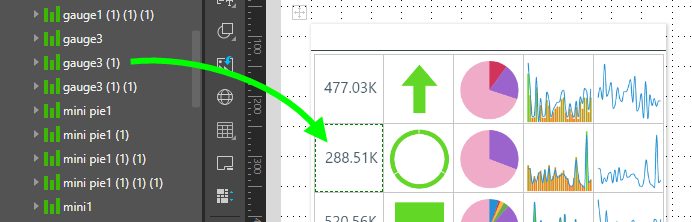

Drag any assets onto the required tile in the table.

Remove Assets from the Table

To move an asset out of the table, simply drag it and place it on the canvas.

To delete an asset that's in a table, right-click on it and click Delete from the context menu.

Edit a Table

To access the Matrix Table's context menu:

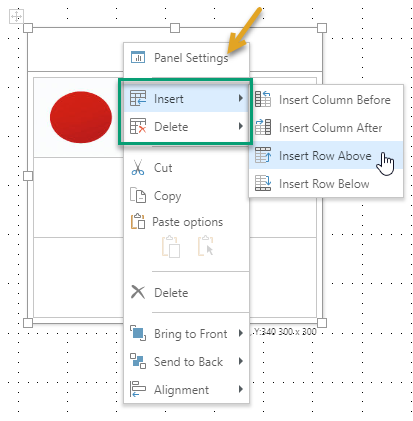

• Right-click the borders of the Matrix Table container (green highlight below).
• Right-click a visual inside the Matrix Table. In this case, the context menu is shown inside a Matrix Table sub-menu.

Tip: In addition to the matrix table items, you can also access other items from the context menu. Where the border is selected, this includes the Panel Settings (orange arrow above) which opens the Formatting Panel.

Function	Description
Insert	Insert columns before or after, or rows above or below, the current selection. If you have the table selected, the column or row is added before or above the first column or row in the table or after or beneath the last.
Delete	Delete selected columns or rows or cell content.

Tip: You can also resize the table's columns and rows by dragging a row or cell border vertically or horizontally.

Table Formatting

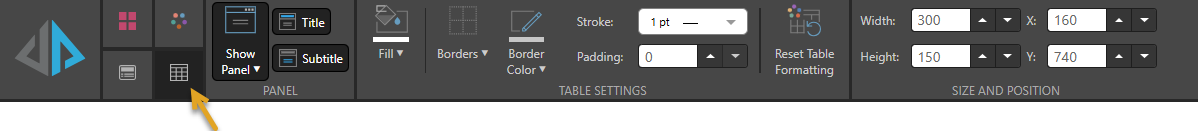

When the table container or cell is selected, various formatting options are enabled from the Component ribbon (orange arrow below). You can also adjust the Table Settings for either your selected cell or whole table, and, for the whole table only, the Panel settings and Size and Position.

• To adjust the table settings for all cells in the table, select the table container.

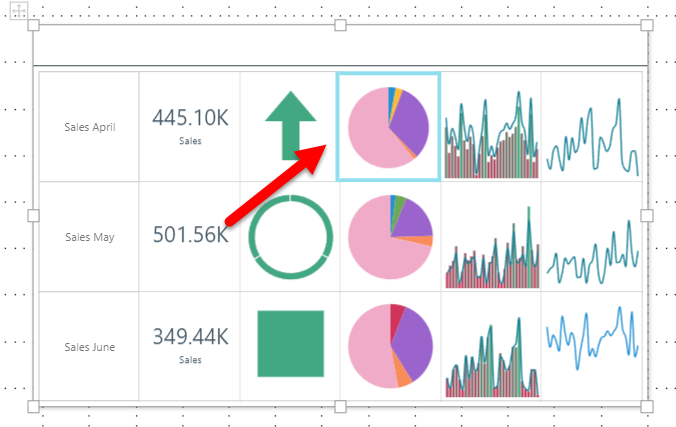

• To adjust settings for a specified cell within the table, select only the required cell.

Panel

Table only. Use the options in the Panel section to format the panel associated with the table. For more information about these options, see Panels in Present Pro.

Table Settings

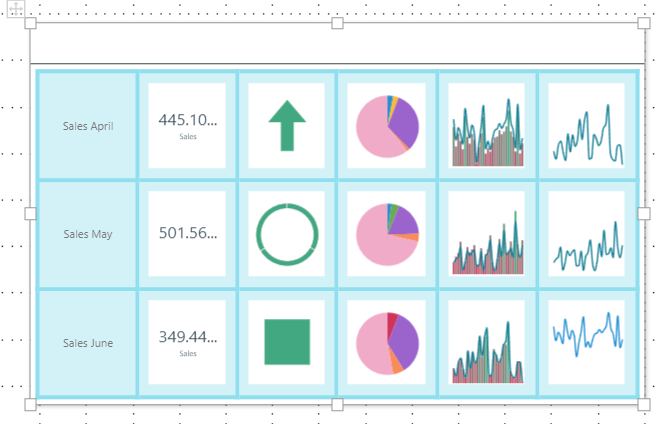

• Fill: Change the color of the cells.

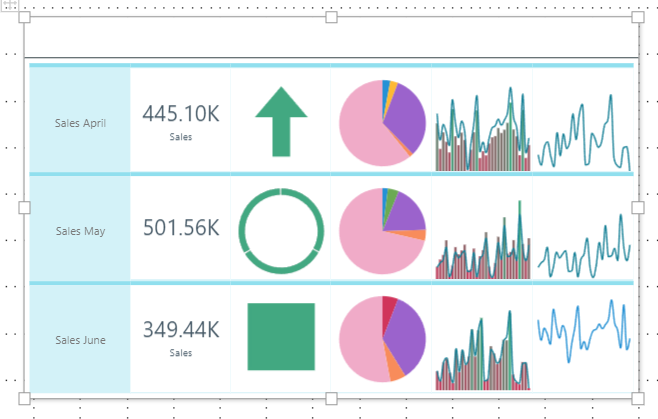

• Borders: Show all or no cell borders, or show borders only at the top, bottom, left, or right of the cells.
• Border Color: Set the border color.
• Border Thickness: Set the border width.
• Padding: Increase padding between cell borders.
• Reset Table Formatting: Revert to the default table formatting.

Size and Position

Table only.

Change the size and position of the selected item:

• Adjust the item size using Width and Height.
• Adjust the item position using X and Y.

Tip: The X and Y coordinates and width and height are displayed underneath each content item when it is selected on the canvas.

Table at Runtime

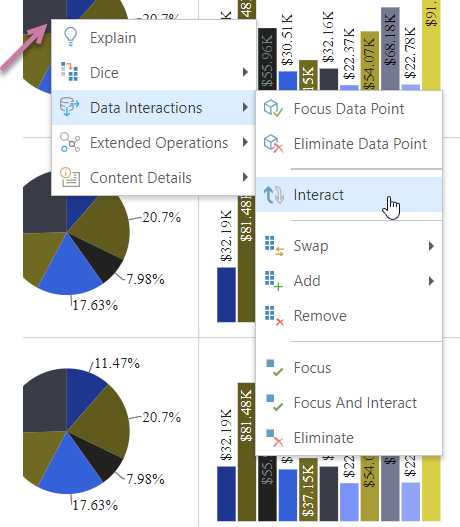

The assets in the table behave as usual at runtime. Slicer and cross-visual interactions are enabled by default, and other functions are available from the context menu as usual.
