Relational Targets

Pyramid supports use of the following relational databases as targets. You can load your ETL into any of these databases:

  • DB2
  • DB2 AS400
  • Exasol
  • MySQL
  • Oracle
  • PostgreSQL
  • SAP Hana
  • SAP IQ
  • SQL Server/ Azure
  • Teradata
  • Netezza

Connect the Target

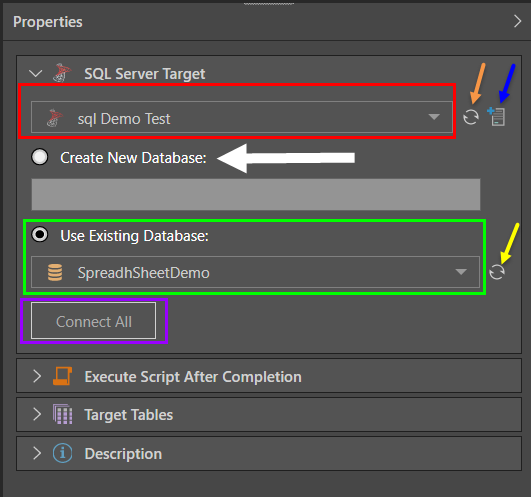

Once the target has been added to the data flow, go to its Properties panel. From the Target window, select the required server where the data model should be loaded (red highlight below). If the server doesn't appear, try refreshing the list (orange arrow), or add a server if you're an Admin (blue arrow).

Next, decide whether to create a new database within which to store the new model (white arrow) , or store the model in an existing database (green highlight).

Database Selection

To load the ETL into an existing database, select ‘Use Existing Database’ and select the required database from the drop-down list. The new materialized model will be stored in the given database.

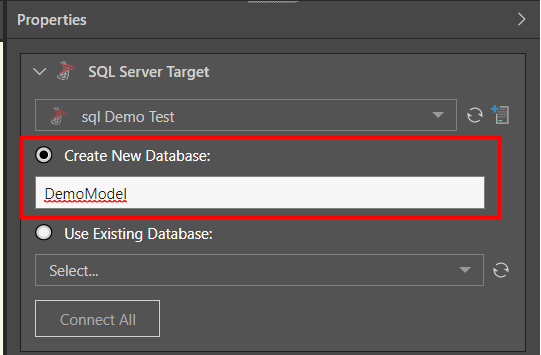

To create a new database, select ‘Create New Database’ and provide a name. When the ETL is executed, both the new database and the new model will be materialized.

  • Click here to learn about database and data model materialization.

Execute a Script for SQL Targets

When using an SQL target (SQL Sever/ Azure, PostgreSQL, or MySQL), an additional window appears in the target's Properties panel, 'Execute Script After Completion'. Expand this window to expose the script editor, where you can construct an SQL script which will be executed after the ETL has run.

  • Click here to learn more about executing a script for SQL targets.

Target Tables

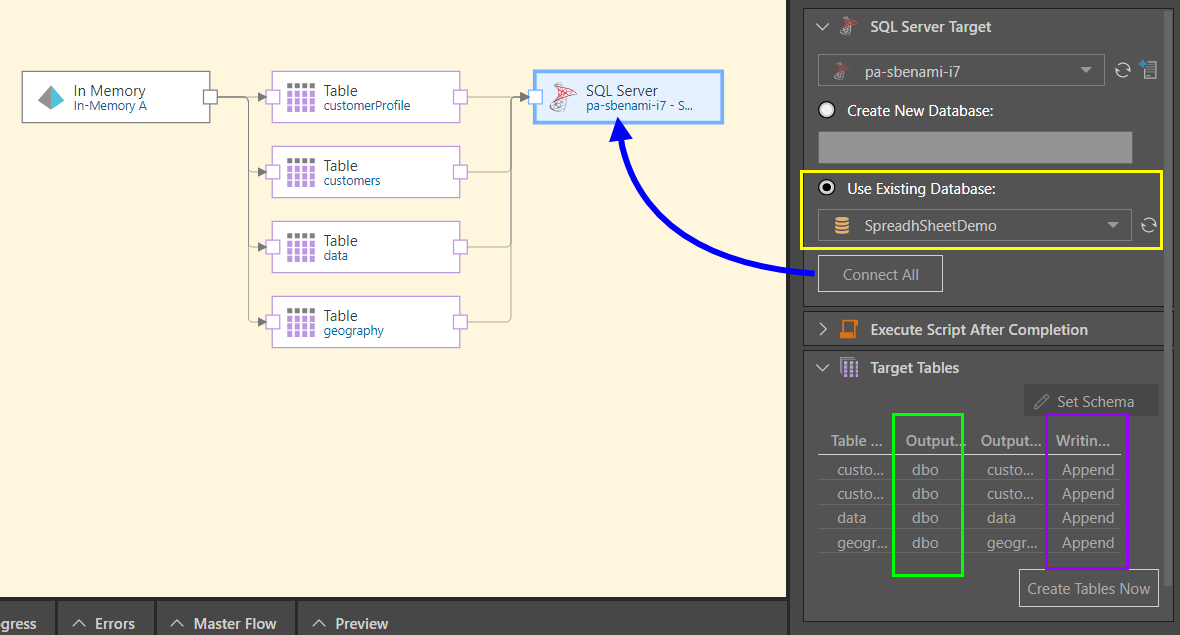

From the Target Tables window, you can rename the table outputs and change the writing type.

  • Click here to learn more about target tables.

Custom Target Schema

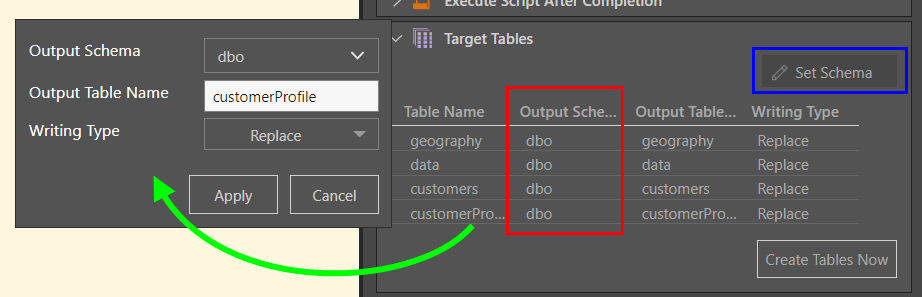

The 'Set Schema' option (blue highlight above) enables you to set a custom target schema for the entire model or for specified tables, rather than the database's default schema. This option is supported for the following target databases only: SQL Server, SQL Server Azure, PostgreSQL, SAP HANA, DB2, Redshift, and Snowflake.

  • Click here to learn more about setting a custom target schema.


As usual, you can add a description in the Description window. This is a useful tool for keeping track of the ETL pipeline, especially if multiple users will be maintaining the model.
