Target Parameterization for Presentations

Presentations may be parameterized through targets - which is an variation of the "filter" mechanism. When content is loaded directly, either through URL loading or through iframe embedding, it is often convenient to allow users to change the targeted item's values using external input. This process is known as external parameterization.

Direct URL Loading

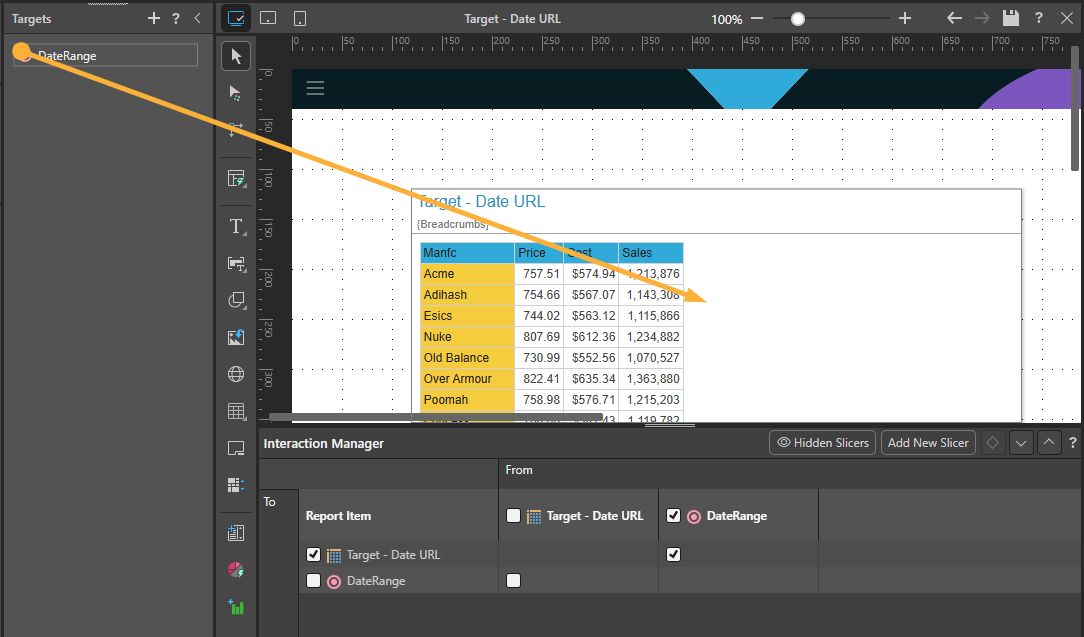

To parameterize a presentation, start by adding a Target and then create an interaction between the target and the relevant visual.

Parameterize the presentation's URL for direct content loading, using the following syntax:

{YourPyramidSite}/direct/?id={content identifier}&target[Target Name]=[Dimension].[Hierarchy].[Member]:[Dimension].[Hierarchy].[Member]

The following simple example pushes the countries France and Germany to the target Product Category on launch:

{YourPyramidSite}/direct/?id={content identifier}&target[Product Category]=[customers].[Country].[France]:[customers].[country].[Germany]

Cube and BW Targets

If you are parameterizing a target that is interacting with a visual from an MS OLAP, Tabular, or BW data source, you need to add the appropriate flag to the URL after the target's name.

MS OLAP / Tabular

If the target connects to a visual from a cube model, add ":MS" after the target's name: "&target[Target1:MS]="

https://eg.pyramdanalytics.com/direct/?id=direct?id=134fd567-d6e3-4b8e-9484-b720d4e39a17&target[Target1:MS]=[customers].[Country].[France]

SAP BW

If the target connects to a visual from a BW model, add ":BW" after the target's name: "&target[Target1:BW]="

https://eg.pyramdanalytics.com/direct/?id=direct?id=134fd567-d6e3-4b8e-9484-b720d4e39a17
&target[Target1:BW]=[customers].[Country].[France]

Embedded Content

Use JavaScript to parameterize an embedded presentation:

var target = {
	name: 'Target 1',
	filters: [
		{ value: '[customers].[country].[France]' },
		{ value: '[customers].[country].[Germany]' },
	],
	olap: false
}

var params = {
	targets: [target]
}

Example: Embed Presentation

//embed the presentation in the container

var countryFilter = { value: '[customers].[country].[France]' };
var target = { name: 'Target 1', filters: [countryFilter], olap: false };

pyramid.embed(document.getElementById('myDiv')), {
	id: "f8d66c64-893b-43fc-8049-e9b710ec90f9",
	host: "https://mysite",
	contentType: "storyboard",
	params: { targets: [target] }
});

Example: Add Filters and Targets

//use two filters and two targets

const filter1 = Filter.create().addUniqueName('MEMBER_UNIQUE_NAME');
const filter2 = Filter.create().addUniqueName('MEMBER_UNIQUE_NAME');
const target = Target.create()
	.add(filter1, 'Target1' /* targetName */, false /* isOlap */)
	.add(filter2, 'Target2' /* targetName */, false /* isOlap */);
embedClient.embed(container, {
	contentId: 'eb84f0af-f996-4850-a5ed-795d5af78513',
	targets: target,
});

Target Parameterization Examples

The basic syntax of the URL is as follows:

{YourPyramidSite}/direct/?id={content identifier}
&target[Target Name]=[Dimension].[Hierarchy].[Member]:[Dimension].[Hierarchy].[Member]

Note: The unique names are presented as a colon-separated list. In this case, two Members are being fed to the target with the name "Target Name."

Example 1: Push France and Germany to Country Target

The example below will filter the target visuals in the presentation according to the &target called 'Country', by the member elements 'France' and Germany':

https://eg.pyramdanalytics.com/direct/?id=direct?id=134fd567-d6e3-4b8e-9484-b720d4e39a17
&target[Country]=[customers].[Country].[France]:[customers].[country].[Germany]

Example 2: Multiple Targets

A separate target is required for each hierarchy that will be used to filter the target visual. However, multiple member elements can be used as a filter for each target, as long as each member element belongs to the same hierarchy.

In the example below, the target visual will be filtered by two targets: Product Category and Manufacturer. The target called 'Product Category' will be used to filter by the 'Bikes' element (from the Product Category hierarchy), while the target called 'Manufacturer' will be used to filter by the 'Acme' element (from the Manufacturer hierarchy).

https://eg.pyramdanalytics.com/direct/?id=direct?id=134fd567-d6e3-4b8e-9484-b720d4e39a17
&target[Product Category]=[products].[Product Category].[Bikes]
&target[Manufacturer]=[manufacturers].[Manufacturer].[Acme]

Example 3: Initialize Visuals using PQL functions

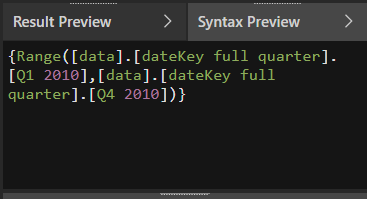

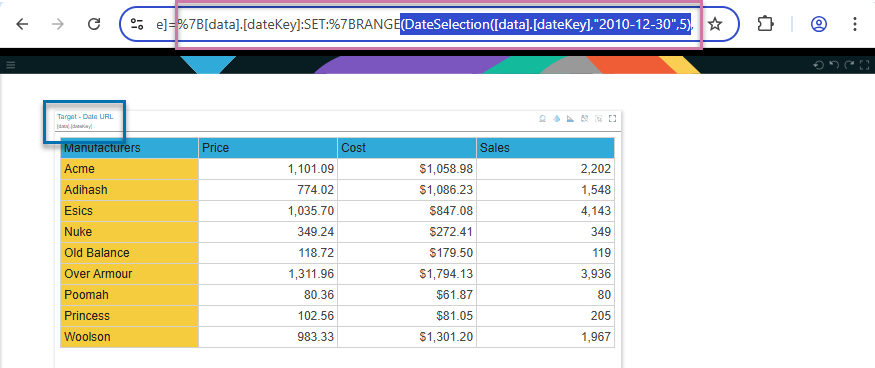

Pyramid supports using PQL functions in URL parameters. This example initializes the presentation visual for a selected date range on launch. Date range parameters (defined using PQL) are passed to the target as part of the URL:

https://eg.pyramdanalytics.com/direct/?id=direct?id=134fd567-d6e3-4b8e-9484-b720d4e39a17
&target[DateRange]=%7B[data].[dateKey%20full%20quarter]:SET:%7BRange([data].[dateKey%20full%20quarter].[Q1%202010],[data].[dateKey%20full%20quarter].[Q4%202010])%7D%7D

It is important to note that the {braces} that are required to define this range need to be escaped for use.

Tip: Filtering in this manner is not limited to dates. You can build a PQL expression in Formulate (or otherwise) and use the &target query string to inject the resulting data into the URL. For more information, see Formulate.

Note: Certain URLs may not work due to special characters in the URL parameter values. To ensure proper functionality, these parameter values must be URL-encoded.

Related information

Direct URLs to Discoveries

If your URL points to a discovery, you need to change from the &target shown above to the &filter approach.

• Click here for more about Filter Parameterization
