Image Size

When querying a data model containing a hierarchy of URL images, that hierarchy may be added to grids and Cartesian charts to display the images in the query. You can then change the size of the images as required.

Change Image Size

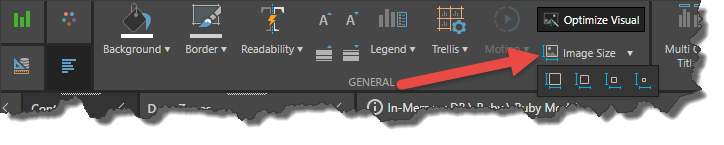

Open the Image Size drop-down from the Component ribbon and select the required image size.

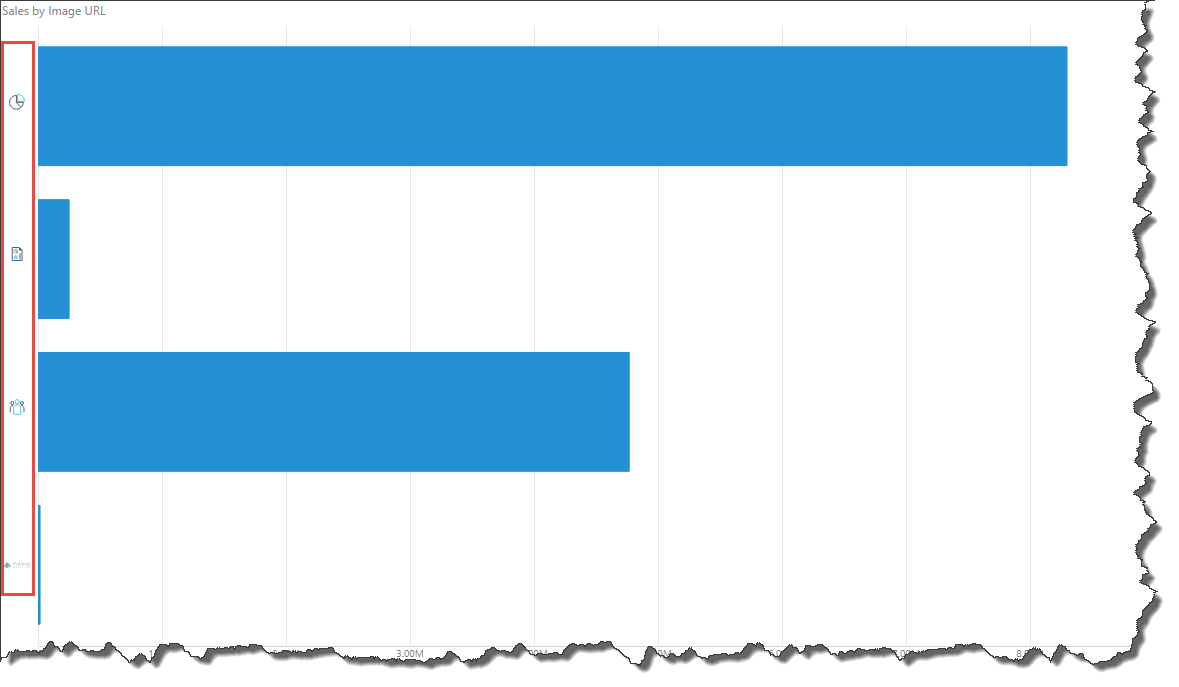

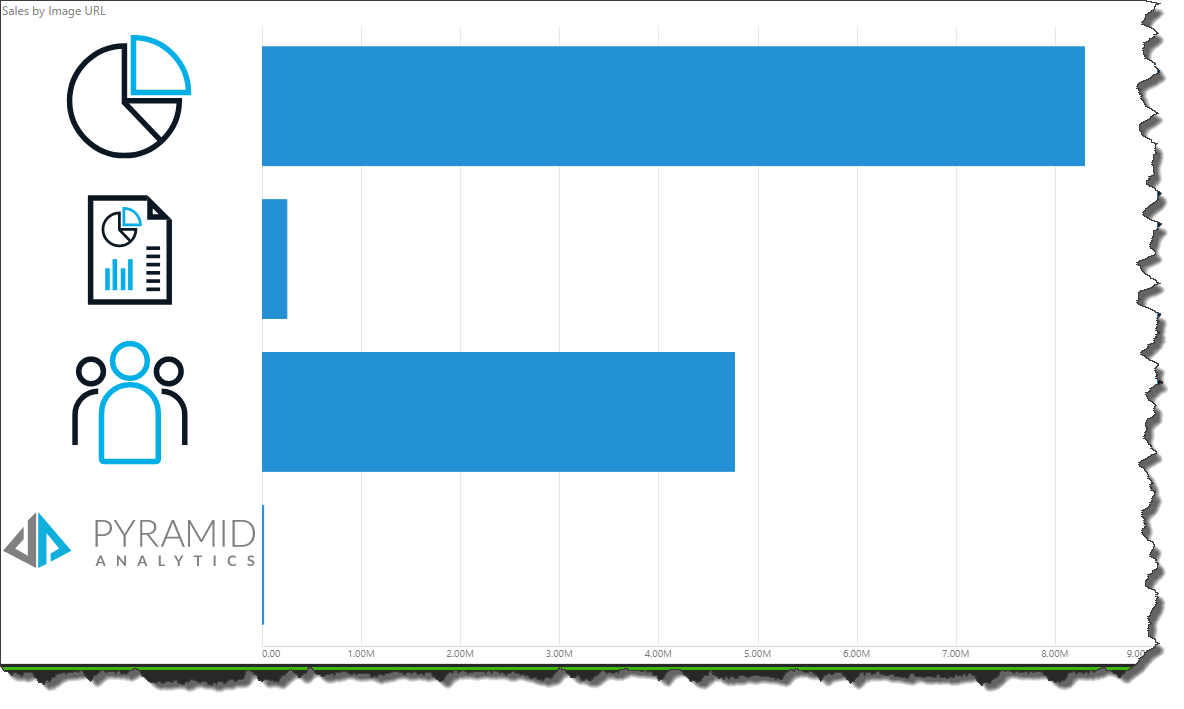

In this example, the image hierarchy was added to a bar chart and the image size was changed from the default (as seen in the image above) to the largest size:

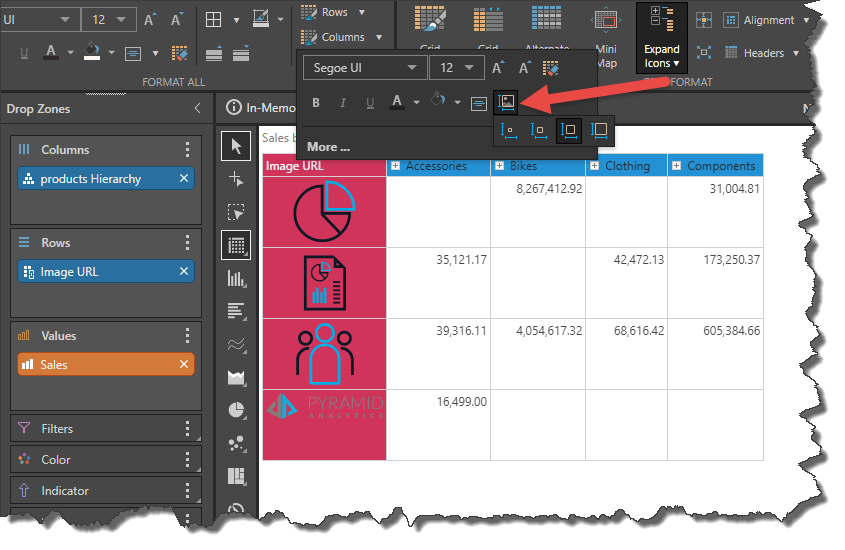

Here, the image hierarchy was added as columns to a grid; the second largest image size was selected from the column formatting drop-down.
