Line Style

Change the line style in a line style in a line or radar chart, or for a regression line. Choose from a solid line, a dotted line, or a dashed line. Changes to the line style can be applied to all lines in the chart, or to selected lines only.

The line style can be set from both the Formatting panel and from the Component Ribbon.

Formatting Panel

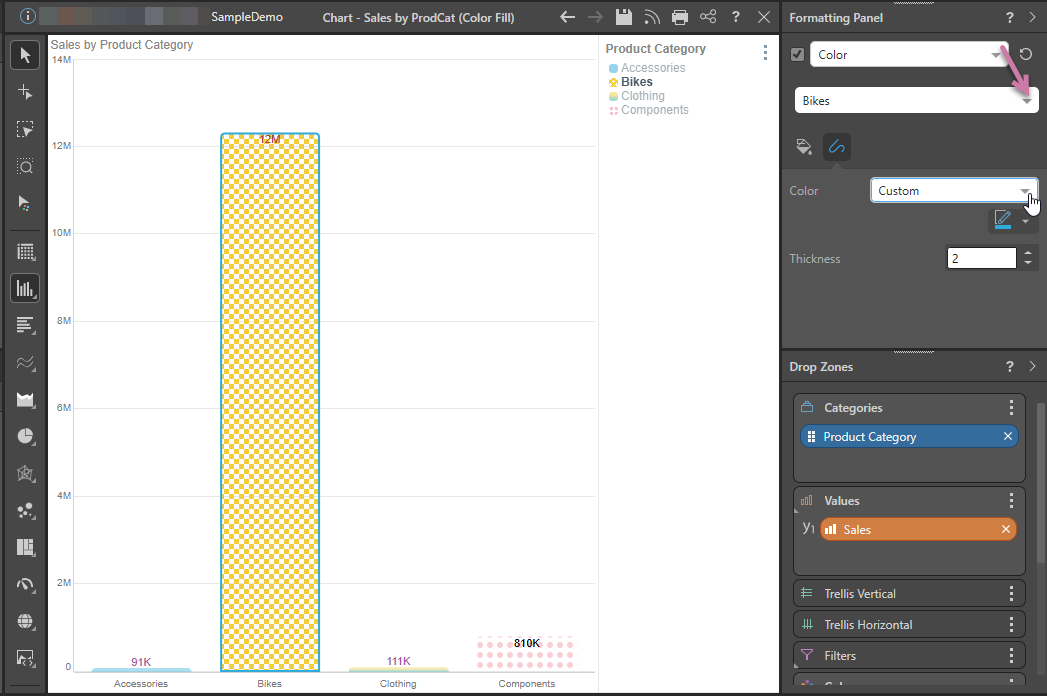

The Line tab is located within the Color view of the Formatting panel. It exposes options for customizing the line color, width, and style.

The following options from the Line tab are for Cartesian charts:

  • Color: set the color of the line. This option does not appear for line or radar charts.
    • Data Point Color: by default, the line color is the same color as the data point.
    • Custom: select a different line color from the color picker.
  • Thickness: change the thickness of the line.

The following options from the Line tab are for line, area, and radar charts:

  • Thickness: set the thickness of the line.
  • Line Style: the default line style is solid, but you can change it to a dotted or dashed line.

When customizing lines, you can apply changes to all lines in the visual, or to a given series only (series editing). To apply changes to all lines, choose default from the Channel drop-down (green highlight below).

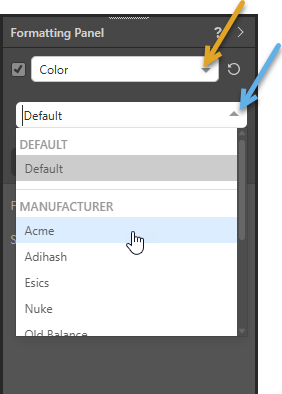

To set changes for a specified series only, choose the series from the Channel drop-down. For instance, to change the line style for the Store series only, select Store.

Component Ribbon

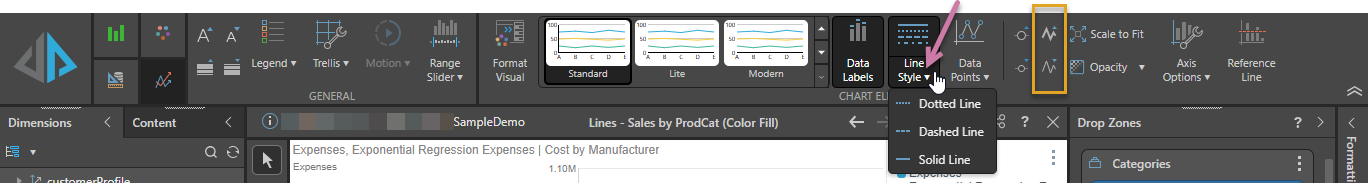

Line style and line width can also be set from the Component ribbon. To set the line style, open the Line Style drop-down (green arrow below). To change the line width, toggle the Increase and Decrease Line Width buttons (red highlight below).

Plotted Charts

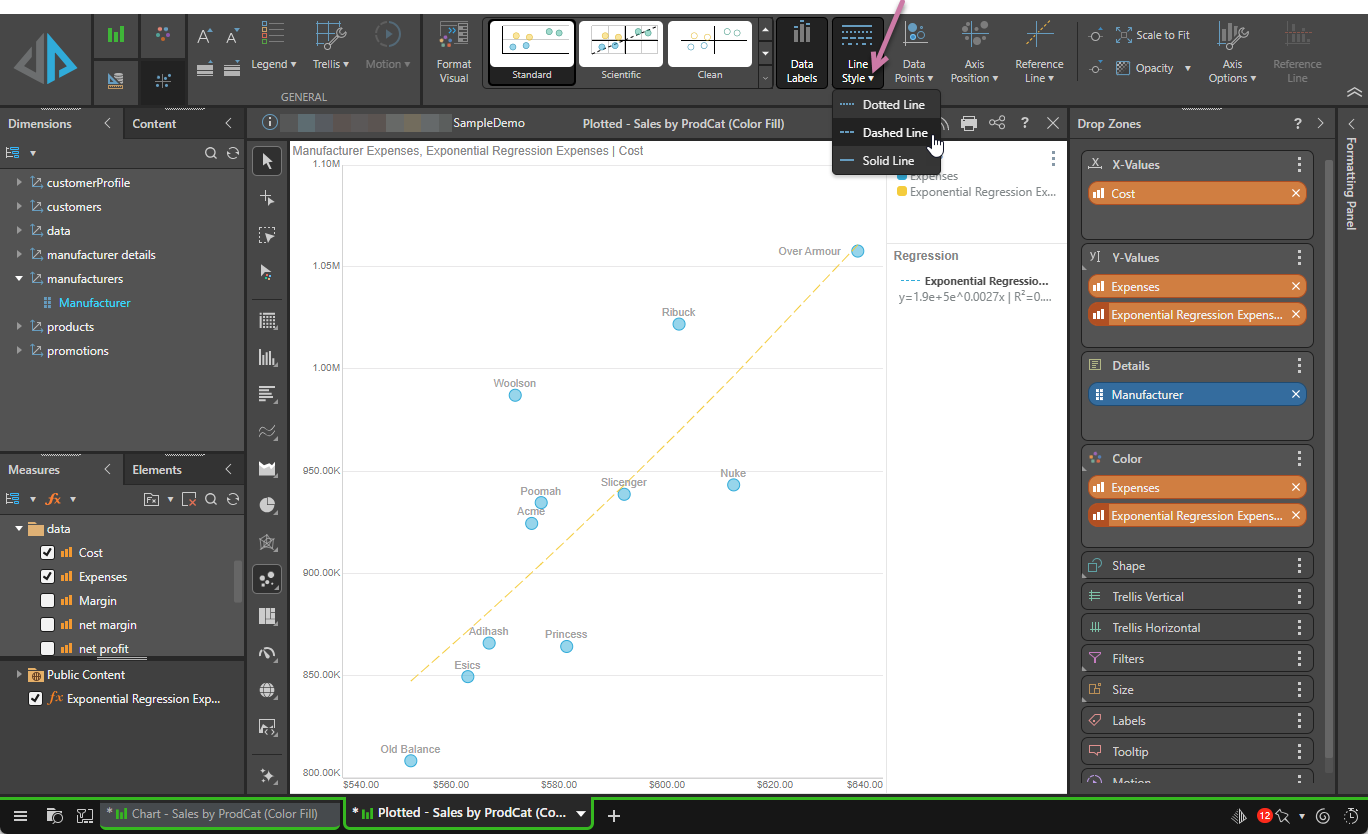

When working with plotted charts, the line style function is enabled from the Component ribbon only when a regression line is added to the chart.
