Tabulate Lite Ribbons

Tabulate features three ribbons, exposing a range of functionality that can be used to change the design and formatting of the tabulation, provide logic, query and data merging and manipulation functionality.

Ribbons

These features offer the user a tremendous amount of flexibility when it comes to merging and mashing data sources. They also give the user great freedom in terms of defining the look and feel of the tabulation.

.

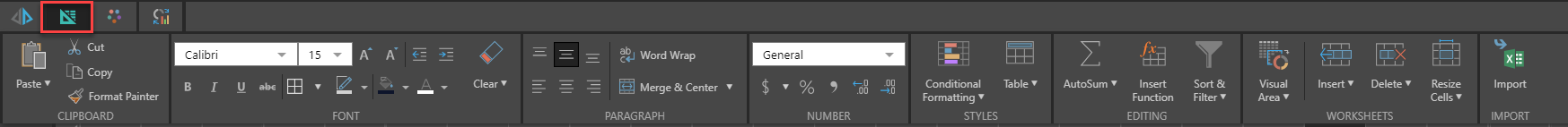

Main Ribbon

This ribbon is displayed by default when Tabulate Lite is started. It can be displayed, when required, by clicking the Tabulate icon on the Ribbon Tab:

Items on the Main Ribbon provide access to the most frequently used functions within Tabulate.

  • Clipboard Area: Allows users to cut, copy, paste and apply the format painter to copy formatting from one cell to other cells.
  • Font: Applies fonts, font sizes, indentation, font formatting, borders, and colors to the selected text.
  • Paragraph: Applies vertical and horizontal alignment, word wrap and merge and center to the selected text.
  • Number: Allows formatting of numbers, currencies, percentage, comma, and increase or decrease of decimal places.
  • Styles: Allows selected text to be formatted using conditional formatting or formatted using a selected table style.
  • Editing: Applies AutoSum or Sort & Filter to selected text.
  • Worksheet: Allows creation of visual areas for selected texts, insertion, deletion of selected rows, columns, and cells, and resizing of cells.
  • Import Area Allows importing of Excel spreadsheets and csv files

Tip: In addition to the Font Formatting options above, it is also possible to select cells and format the text in those cells using the shortcut keys Ctrl+B (bold), Ctrl+I (italic), and Ctrl+U (underline).

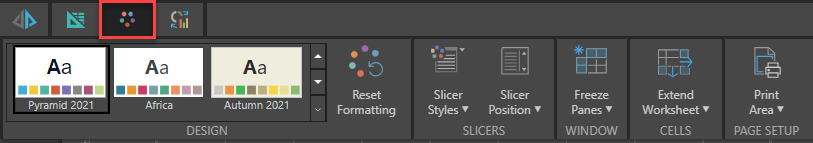

Design Ribbon

This is displayed by clicking the Design icon on the Ribbon Tab.

This provides access to various functions to define the appearance of a Tabulation:

  • Design: Applies one of the pre-defined Themes. Also resets the Formatting to the default settings.
  • Slicers: Enables the slicer style (Classic, Modern, or Clean) and position (Default, Left, Right, Top, or Bottom) to be defined.
  • Window: Enables panes to be frozen (Top Row, First Column, or User-defined). Also used to unfreeze frozen panes.
  • Cells: Allows additional columns and rows to be added.
  • Print: Enables Print Area to be set or cleared.

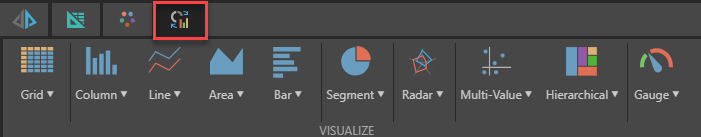

Change Visual Ribbon

This is displayed by clicking the Change Visual Ribbon Tab.

This allows users to change the visualization for the currently selected visualization to any of the visualization types.
