The Multi Chart Title can be enabled when trellising Cartesian, segment, or advanced charts. It is useful as it allows users to show the relevant title for each chart, adding more context for consumers of the report, and helping them to easily understand what each chart is showing.
Add and Format Multi Chart Titles

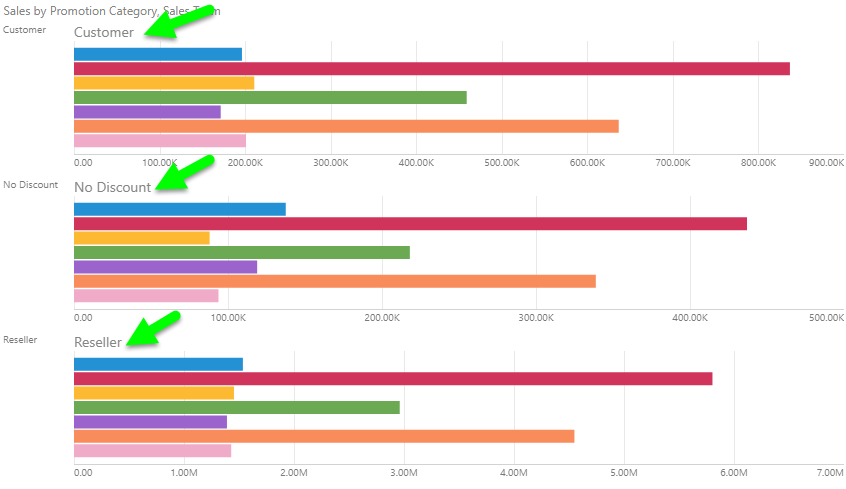

To add a multi chart title to your trellised chart, open the Formatting panel and choose Multi Chart Title from the top drop-down list. Click the corresponding check box to display the titles in the report (green arrow below).
You can make the following formatting changes:
- Font: change the font type.
- Size: change the font size.
- Style: change the font style (bold, italics, or color).
- Align: align the trellis axis label to the top, middle, or bottom of the trellis axis.
