You can use the Python source node to run a Python script that will generated table outputs than can then be connected directly to a target node, or to tables from another source to create a data mashup.
There are a few ways in which to construct your Python script: they can be downloaded from the Pyramid Marketplace, imported from the Pyramid content manager, or written or pasted directly to the Python node's Properties panel.
Configure the Python Source
Add the Python source node to the data from and then go to its Properties panel to configure the script.

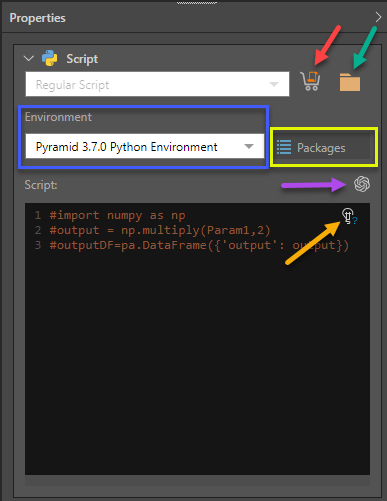

There are four ways in which you can provide the Python script:
- Ask Chat GPT: get an AI-generated Python script based on a given prompt (purple arrow above).
- Marketplace: download a script from the Pyramid Marketplace (red arrow above). Once downloaded, the script will appear in the script window.
- Pick a Script: open the content manager folder tree to select a script that was built and saved in Pyramid (green arrow above). Once the script is selected, it will appear in the script window.
- Write or Paste a Script: write or paste a script directly into the script window.
Use AI to Generate a Script
Pyramid's OpenAI integration lets you use AI to generate Python statements. This is useful if you want to generate code quickly, or don't know the syntax, for instance, To do this, click the Ask Chat GPT icon from the Properties panel. In the text field at the top of the "Generate Your Python" dialog, enter a description of the query you want to perform.
The dialog for generating your script contains the following fields and buttons:
- Text Field: enter a description of the query you want to perform and click the arrow to enter your query description and return a it as a script.
- Script Window: the AI-generated script will appear in the scripting window.
- Explain Code: open an AI-generated explanation of the script that was returned in the scripting window.
- Apply: apply the script to the Query node.
- Cancel: close the dialog without applying any changes.
This function produces an AI-generated description of the script that was returned in the scripting window (orange arrow above). This explanation can be generated regardless of the method used to write the script.
This explanation can be copied, and then pasted to the "Description" field, for instance.
Warning: AI-generated assets are generated from public domain algorithms, which can produce both erroneous and inconsistent/ random results. Use at your own risk.
Choose the virtual Python environment (blue highlight above) that uses the required Python version and packages.
Pyramid enables Admins to create multiple virtual environments, where each of these environments can use a different Python version and different 3rd party packages.
View the list of packages that have been downloaded to the currently selected virtual Python environment (yellow highlight above).
- Click here to learn more about virtual scripting environments.
Configure the Output
The Output window displays the output of the current script. Each row in the listing represents a column:
- Data Frame: the data frame of the column.
- Column Name: the name of the column.
- Type: the data type of the columns.
- Size: the size of the column

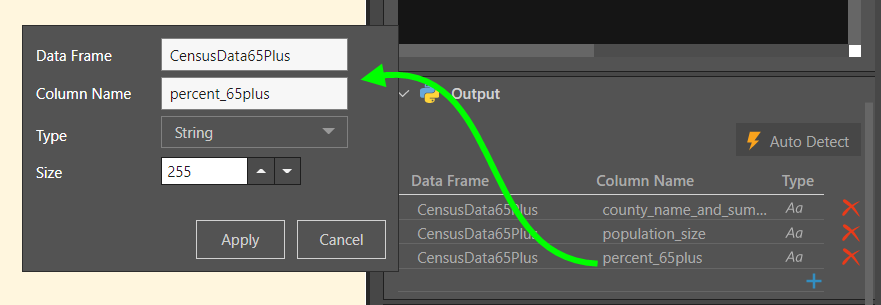

To edit a column output, click on it to open its fly-out menu (green arrow below). To delete a column, click its delete icon, and to add a column, click the plus icon.
When downloading a Marketplace script, Pyramid detects the output automatically. When writing your own script, or selecting a shared script, users must manually add the output columns to the Output window.

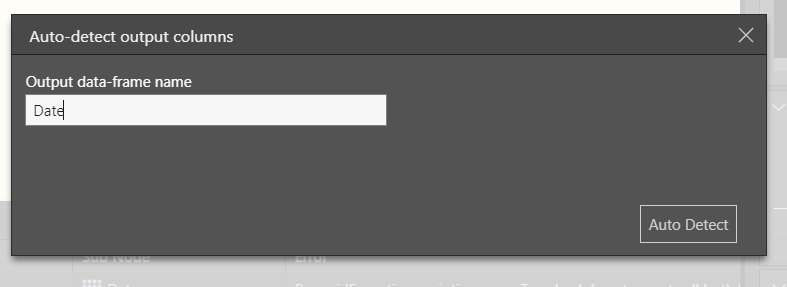

Click 'Auto Detect' from the Output window to open the 'Auto-detect output columns' dialog, where you can enter the data frame. Pyramid will then detect the given data frame and its columns in the script, and add them to the output list.
- Click here to learn more about data frame support.

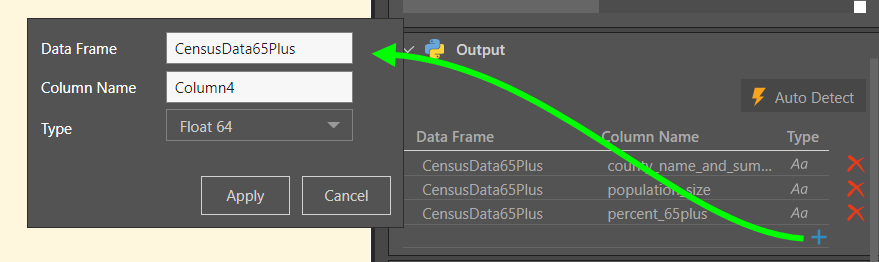

To add columns to the output list manually, click the plus icon (green arrow below). You need to specify the data frame, column name, and data type.
- Click here to learn more about the Select functions.

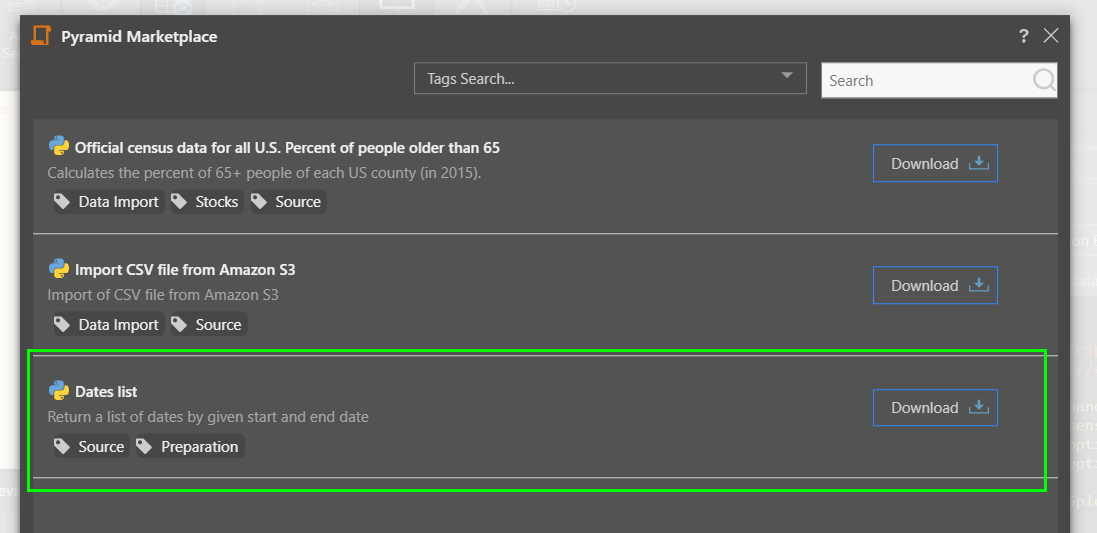

In this example, the Dates List script is downloaded from the Pyramid Marketplace to create a list of dates.
As soon as the script is downloaded, it's added to the script window. We can see here the start and end date (purple highlight below), and the data frame and column name (white highlight), which correspond to the output listing:

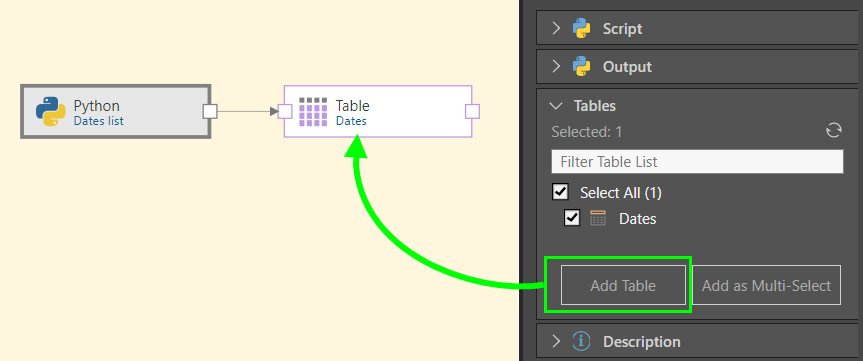

Next, the new Dates table was connected to the source node by clicking the Add Table button:

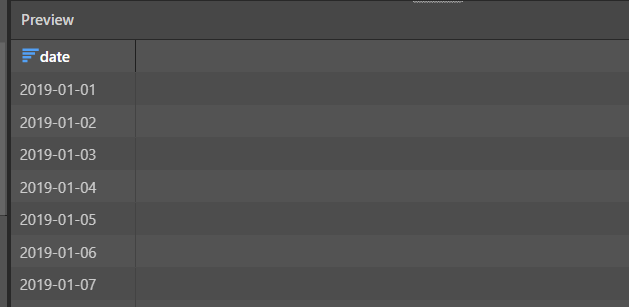

When the new Dates table is previewed, we see the list of dates that was generated by the script:
