Creating Slicers in Publish Lite

Slicers allow you to create different versions of a published document with data that is filtered according to your "slicer selections." For example, you can add a Country slicer to your publication and set up interactions between it and a number of visuals describing Sales data; when the publication is exported or a subscription runs you can select, say, USA from your slicer to create a document where all Sales visuals show the relevant data for the USA only.

In effect, this functionality allows you to create a "template" in Publish Lite and then use slicers and the Interaction Manager to manage how the visuals, placeholders, and so on in the document will be populated when the publication is built from that template. This can produce hundreds or even thousands of published report variations.

Adding a slicer to your publication

Use this option to build slicers on the fly, or to filter your publication by elements from other data models.

Before you begin

You would typically add slicers to your publication after you have added one or more other content items to your pages. This usually means adding existing visuals that were created in Discover or creating new "one off" visuals locally in the publication (using Discover Lite or Smart Reporting).

Note: If your visual includes its own slicer (typically added in Discover or Smart Reporting on creation), the default filtering is retained when the visual is added to the publication. For example, a pie chart that is filtered by Manufacturer retains the default selection (ACME, say) from the source by default. You can override this filtering, changing the selected Manufacturer, by adding a new slicer with the same Data hierarchy to the publication and creating an interaction between the visual and the new slicer.

Step 1: Creating a new slicer

From the Toolbox:

  1. Click Add New Slicer (purple arrow below).

    2. The New Slicer panel opens.

  2. Select the relevant hierarchy from the options in the Choose Model and Choose Data panels.

    3. The preceding example shows the selection of the Country hierarchy from the SampleDemo model (blue arrows above). Note that the model has been "Used" in the publication already. Tip: If you know the name of your Model or Data hierarchy, you can search for it using the search options (orange highlights).

When you click on the hierarchy that you want to use as your slicer, the New Slicer panel closes and Interaction Manager opens. You will create "interactions" between your new slicer and the various content items in this panel.

Step 2: Creating slicer interactions

From the Interaction Manager, select the relevant checkboxes to create interactions between your slicers and the content items in your presentation:

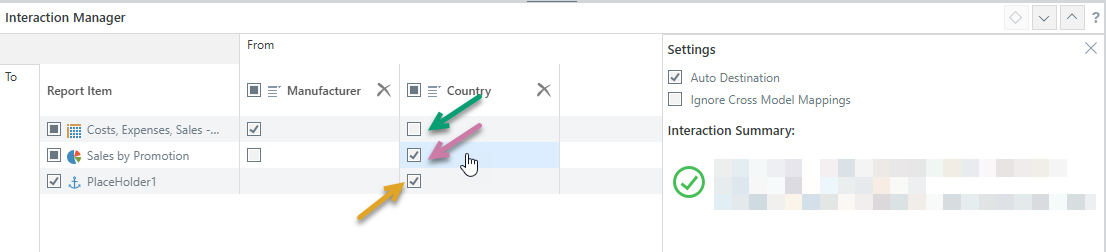

  • If you do not want the slicer to affect a content item in the built publication, do not select the checkbox between the slicer and the content item (green arrow below).
  • If you want the slicer to affect a content item in the built publication, select the checkbox between the slicer and the content item. The example shows that the Country slicer affects the Sales by Promotion pie chart (purple arrow) and PlaceHolder1 (orange arrow).

  • Click here for more information about the Interaction Manager
  • Click here for more information about Dynamic Placeholders

Step 3: Testing your slicer

You should build your publication in an appropriate format to test that your slicers are applied correctly:

  1. Click Run (top-left) or press F2 on your keyboard.

    2. The Print & Export dialog opens.

  2. From the Output tab, select document format and any settings associated with the format.

    3. Tip: You should select the typical output for your publication when it is distributed, we recommend building a PDF.

  3. Click the Slicers tab and choose the values you want your slicers to take in the published document.

    4. Note: The preceding example shows a simple drop-down for selecting a Country filter.

  4. Click Export.

Pyramid builds the publication in the format selected and with the settings specified for the format type and slicers. You should check that the slicers you selected affected the publication as you would expect. For example, if you select to show only Sales information relating to Manual workers, you should check that the breadcrumb trails showing the filtering reflect your selection.

Managing existing slicers

You can manage your slicers and their interactions with other content items (visuals, placeholders, and so on) with the Interaction Manager. The Interaction Manager is opened from the overhead ribbon (purple arrow below):

The following management actions can be completed with the Interaction Manager:

  • Create and remove interactions between slicers and other content items.
  • Delete slicers from the publication.
  • Configure interaction settings.
  • Click here to learn more about the Interaction Manager
