A "slicer" comprises a list of member elements from a model hierarchy that you can use to filter the query by one or more elements at runtime. For example, if you add the Country hierarchy to a drop-down slicer, you can use it to filter the data query to include data from just one selected country from the hierarchy.
Slicers can also be used with measures to drive slightly different mechanisms, including:
- A "switching" effect, where the measure can be swapped out using the measure slice. These are known as variable measure sets.
- A "parameterization" effect, where a VALUE filter can be built using a given measure to numerically filter the query. (See below for more information.)
- Click here to learn about slicers in Discover.
Slicer Types
Slicers aren't just drop-down lists, you can add buttons, a tree, or even a date-time calendar to filter your presentation assets. The list of available types include:
- Drop Down: Adds a drop-down list that you can select one slice from (blue arrow below).
- Multi Select Drop Down: Adds a drop-down list that you can select multiple slices from simultaneously.
- List Box: Adds a single-select list within a box container.
- Multi Select List Box: Adds a multi-select list within a box container.
- Text Box: Adds a textbox with drop-down.
- Buttons: Adds single-select buttons, rather than a list (orange arrow below).
- Multi Select Buttons: Adds multi-select buttons.
- Multi Select Tree: Supports 'regular' hierarchies in both cube and SQL models. Adds a multi-select tree, which you can navigate through to find and select relevant elements.
- Single Select Tree: Supports 'regular' hierarchies in both cube and SQL models. Adds a single-select tree, which you can navigate through to find the relevant element.
- Date-Time Picker: The date-time picker is a specialized slicer visualization (in the form of a calendar) designed to make it easier to use date-time hierarchies and their associated calculations. The date-time picker is automatically generated at runtime when using the dateKey hierarchy to create a slicer. As with other slicers, the date-time picker slicer can be customized from the slicer settings.
Note: Date-Time Pickers are only supported for SQL models. This functionality is not currently supported for MS OLAP, Tabular, or SAP BW.
Adding Slicers to a presentation
There are various options for adding slicers to presentations:
- Add an existing slicer that was built in Discover. For more information, see Add Existing Slicers from Discover.
- Build a new slicer (either a quick slicer or an advanced slicer) on-the-fly in Present:
- Build a new quick slicer using the New Slicer option in the Toolbox.
- Build a new slicer using the Advanced Slicer wizard from the ribbon, Slicers panel, or interaction manager.
- Copy and paste an existing slicer from elsewhere in the presentation, or drag it onto the canvas from the Hidden Slicers panel. For more information, see Hidden Slicers.
Tip: When building a new slicer in Present Pro, the slicer and its target should be selected from the same data model, otherwise an error may be returned. If the slicer and the target come from different data models, you may configure a model mapping in order to create a viable interaction between them. For more information, see Model Mapping in Present Pro.
Note: When you add Slicers in Present they typically have an effect on the visuals at runtime, filtering visuals when you make selections or updating dynamic text (for example). This functionality is enabled because interactions are usually created automatically from the slicer to a visual, from the slicer to another slicer, or even to a dynamic asset.
Add Existing Slicers from Discover
Existing slicers and parameters that you have access to will appear in the Content panel. To use these, simply drag them onto the presentation slide.
See the example below for more details about adding existing slicers to your presentation.
Add an Existing Slicer
Adding slicers from a discovery that was created in Discover to a presentation is a simple process achieved in just a few steps.

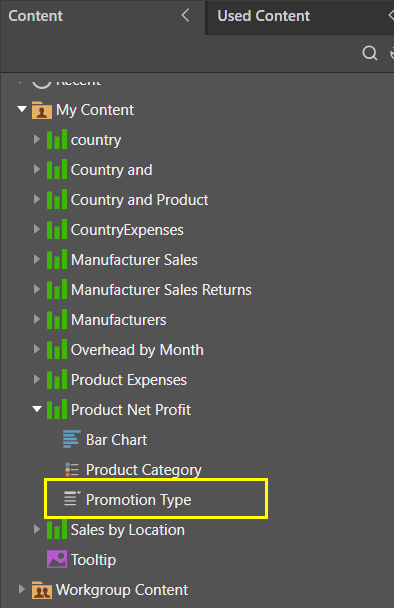

Step 1: Locate the slicer in the Content Panel
To add existing slicers to slides in the presentation, first locate the required slicer in the Content panel; you'll need to expand the visual in the Content tree to find its associated slicer (yellow highlight below).

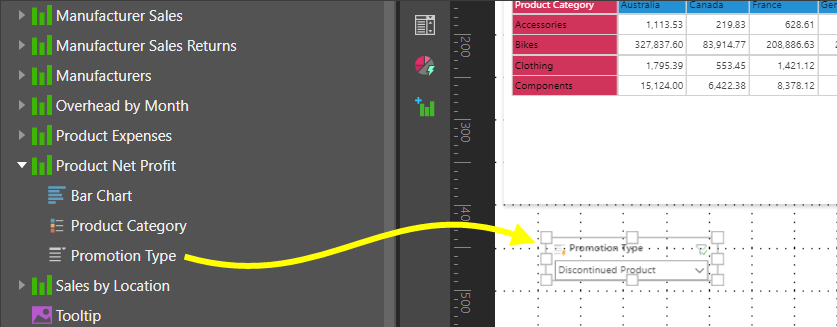

Step 2: Drag the slicer onto the canvas
Drag the slicer and drop it onto the canvas (yellow arrow below).
Step 3: Add or check your interactions
If needed, you can add interactions between the slicer and any visualizations that the slicer should filter:
- If Auto Interact is selected on either your Presentation or Slides ribbon, you may not need to add an interaction manually. The interaction should have been created automatically when you added the slicer.
- If Auto Interact is not selected, you should open the Interactions Manager from the Present ribbon and select the checkbox at the intersection between the slicer and the visual it should affect.
In either case, you should check the interactions are correct by selecting Show Interactions on one of the same menus; this visualizes the interactions using arrows. For example, with Show Interactions enabled, the orange interactions in the following image show the slicer filtering the Product Expenses and Product Net Profit visuals:
To test your slicer, launch the presentation at runtime (F2) and change its selections:
Duplicate Slicers
When a new slicer is configured, it is connected to a data source and a hierarchy within that data source. There may be times when you want to add the same slicer to multiple slides in a presentation and when Pyramid informs you (using the New Slicer Warning dialog) that you are re-using a slicer that already exists (a duplicate slicer).
- Click here for information about Duplicate Slicers
Using Slicers at runtime
Although making a basic selection from a slicer is fairly intuitive, there are some extended interactions and related tasks that make them more powerful:
- You can make more complex selections; for example, multi-select and slicer search. For more information, see Making Slice Selections in Discover help.
- Once you have made certain selections across your slicers, you can "bookmark" your selections. This lets you return to those selections quickly and easily in the future. For more information, see Bookmarks.
- Actions can be attached to slicers in Present, so that when a user changes the slicer at runtime, it triggers an effect in addition to filtering queries. For more information, see Slicer Actions.
Editing and Styling Slicers
- To learn how to format your slicer in Present, click here.
- To learn how to style your slicer, click here.
Delete Slicers
Where the slicer is local to the presentation (is not linked to a discovery) it is deleted from Pyramid. Where the slicer is re-used from a discovery or has been made shareable, it is simply removed from the presentation.
- Click here to learn about deleting slicers from presentations.
